Gobel PowerFable 16 Product Introduction

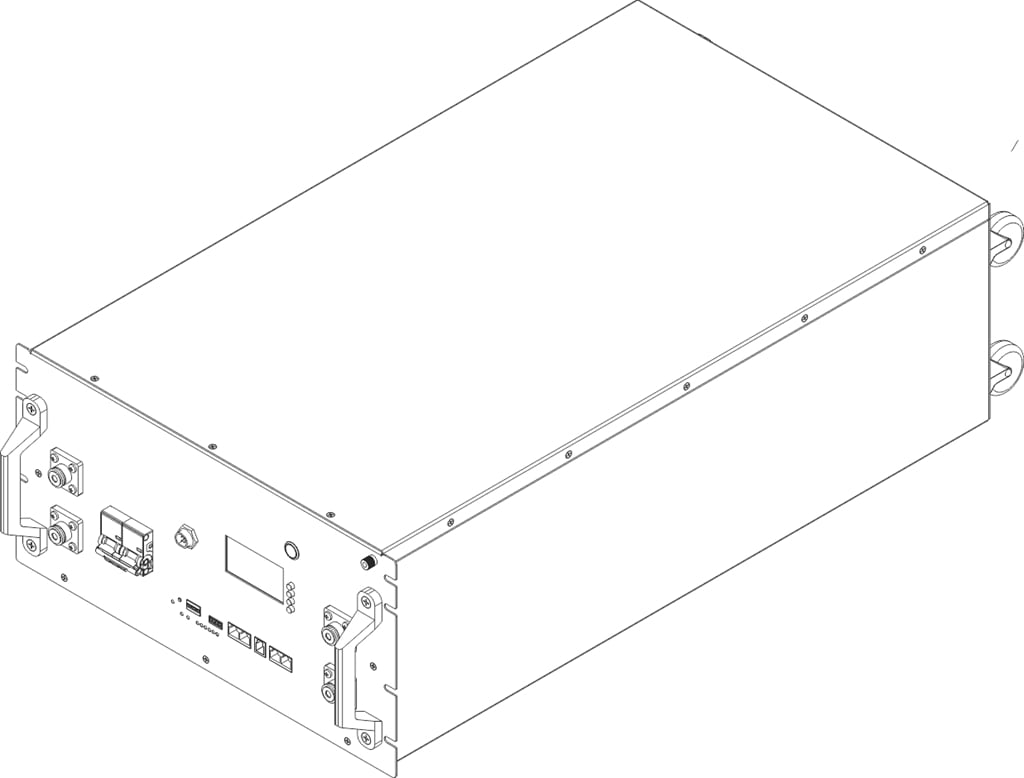

PowerFable 16 is a 51.2V 314Ah (approximately 16kWh) LiFePO₄ (lithium iron phosphate) low-voltage energy storage battery from Gobel Power. It uses high-performance 314Ah LiFePO₄ cells, comes in a standard 6U rack-mount enclosure with casters, and is equipped with a high-performance Battery Management System (BMS) for comprehensive battery monitoring and protection. It is suitable for residential and small commercial & industrial energy storage scenarios.
Key Features
- High-capacity storage: Rated capacity of 314Ah (approximately 16kWh), meeting residential and small commercial & industrial energy storage needs
- Safe and reliable: LiFePO₄ cells offer stable chemistry and excellent thermal stability
- Intelligent BMS management: Real-time monitoring of battery voltage, current, temperature, SOC (state of charge) and other parameters, with multiple protections against over-charge, over-discharge, over-temperature and short circuit
- Flexible expansion: Supports parallel connection of up to 63 batteries for easy capacity expansion; the DIP switches support automatic address assignment, so there is no need to set addresses manually one by one
- Multiple installation options: 6U standard rack-mount design with casters, supporting rack-mount, stacked (up to 3 units) and floor-standing installation
- Online monitoring: Built-in WiFi interface, compatible with the Gobel VRM online monitoring platform, and supports integration with Home Assistant, ioBroker and other platforms
- Mobile app management: One-click battery configuration and upgrades via the mobile app
- Standard interfaces: Provides multiple communication interfaces including RS485A/CAN (inverter), RS232 (PC/mobile phone) and RS485B/RS485C (parallel connection), compatible with mainstream inverters
Version Overview
The PowerFable 16 series is divided into two sub-versions by BMS type. Both share the same electrical parameters and installation method, but differ in BMS-related functions (communication protocol settings, host software, mobile app):
| Item | PCBMS Version | JKBMS Version |
|---|---|---|
| Product model | GP-SR1-16K-PC200B | GP-SR1-16K-JK200 |
| Former model | GP-SR1-PC314 | GP-SR1-JK314 |
| BMS type | PCBMS | JKBMS |
| Communication protocol settings | Screen menu / PCBMS host software / Gobel Console APP | Screen menu / JKBMS host software / JKBMS APP |
Refer to the model number on the product nameplate or panel: a model ending with PC200B is the PCBMS Version, and a model ending with JK200 is the JKBMS Version. The former models GP-SR1-PC314 and GP-SR1-JK314 correspond to the current PCBMS Version and JKBMS Version respectively.
Specifications Overview
| Item | PCBMS Version | JKBMS Version |
|---|---|---|
| Product name | Gobel PowerFable 16 (PCBMS Version) | Gobel PowerFable 16 (JKBMS Version) |
| Product model | GP-SR1-16K-PC200B | GP-SR1-16K-JK200 |
| Brand | Gobel Power | Gobel Power |
| Product type | 51.2V 314Ah LiFePO₄ low-voltage energy storage battery | 51.2V 314Ah LiFePO₄ low-voltage energy storage battery |
| Main parameters | ||
| Cell type | LiFePO₄ | LiFePO₄ |
| Rated capacity | 314Ah [1] | 314Ah [1] |
| Parallel expansion | Up to 63 units in parallel [2]; series connection strictly prohibited | Up to 16 units in parallel; series connection strictly prohibited |
| Nominal voltage | 51.2V | 51.2V |
| Operating voltage | 44.8V ~ 58.4V | 44.8V ~ 58.4V |
| Nominal energy | Approximately 16kWh | Approximately 16kWh |
| Usable energy | 16kWh [1] | 16kWh [1] |
| Max. output power | 7.68kW | 7.68kW |
| Charging current [3] | Max. continuous 150A; peak 200A (25 seconds) | Max. continuous 150A; peak 200A (25 seconds) |
| Discharge current [3] | Max. continuous 150A; peak 200A (25 seconds) | Max. continuous 150A; peak 200A (25 seconds) |
| Active balancing | Yes | Yes |
| Other parameters | ||
| Max. depth of discharge | 100% DOD | 100% DOD |
| Dimensions (W × H × D) | 482.6 × 241.3 × 773mm | 482.6 × 241.3 × 773mm |
| Weight | 120kg | 120kg |
| Display | Screen (SOC, alarms, total voltage, current, inverter protocol) | Screen (SOC, alarms, total voltage, current, inverter protocol) |
| Ingress protection | IP21 | IP21 |
| Operating temperature | 0°C ~ 50°C | 0°C ~ 50°C |
| Storage temperature | 0°C ~ 35°C | 0°C ~ 35°C |
| Relative humidity | ≤95% RH (non-condensing) | ≤95% RH (non-condensing) |
| Altitude | ≤3000m | ≤3000m |
| Cycle life | ≥8000 cycles (25°C±2°C, 70% EOL) | ≥8000 cycles (25°C±2°C, 70% EOL) |
| Electrical isolation protection | Built-in circuit breaker | Built-in circuit breaker |
| Installation | Rack-mount / stacked (≤3 units) / floor-standing (optional wall fixing), with casters at the bottom | Rack-mount / stacked (≤3 units) / floor-standing (optional wall fixing), with casters at the bottom |
| Communication interfaces | RS485A/CAN (inverter), RS485B/RS485C (parallel), RS232 (PC/mobile phone), WiFi (online monitoring), dry contact (DRY) | RS485A/CAN (inverter), RS485B/RS485C (parallel, PC), WiFi (online monitoring), dry contact (DRY) |
| Energy throughput | 50MWh [4] | 50MWh [4] |
[1] Test conditions: 25°C±2°C, beginning of life (BOL), 0.5C charge / 0.5C discharge, 100% DOD. [2] Battery modules automatically form a network after power-up, with no DIP switch settings required. [3] Current is affected by temperature and SOC. [4] Energy throughput refers to the total cumulative charge/discharge energy over the battery's entire service life.
Application Scenarios
- Residential PV energy storage systems
- Small commercial & industrial energy storage systems
- Backup power (UPS) systems
- Off-grid energy storage systems
